Bercom Inc. is dedicated to producing painter’s tools that solve problems that lead their customers to ask “why didn’t I think of that?” Their flagship product is called the HANDy Paint Pail® it reduces fatigue by a handy strap while it holds the brush with an ingenious use of a magnet. Bercom wanted to build on the success of this product by offering an inexpensive, but ergonomically sound, roller tray designed specifically to be used with mini-rollers. One of the beauties of this product is that it incorporates a disposable liner. This makes clean up and color changes a snap while eliminating the excess paint from being washed down the drain.

Omnitool’s industrial design team worked in association with engineers at Primordial Soup Inc., a product development consulting company, to develop the design of the paint tray and liner. Great care was taken to ensure that the design of this product reinforced a family appearance with the rest of the product line.

Once the tray design was finalized Omnitool went to work designing and building the tooling required to form the product from RPET sheet. The tool was designed to be run in a Lyle 140f former along with a steel rule trim die and a stacker.

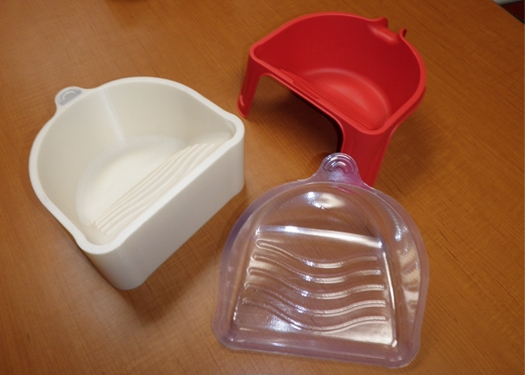

As part of our process numerous prototypes were made to test comfort and function as well as testing the fit of the liner. These prototype parts were invaluable as they were used to secure approval into retail channels, as well as to help nail down shipping and fulfillment details.



For more information on this design and manufacturing project, please see the details below.

For details about our other services please contact Omnitool
info@omnitool.com 763.535.4240

Request a Quote

Back to Top


CASE STUDY Complete Design Services and Production Tooling for Paint tray System

Project ScopeIndustrial Design
Rapid Tooling And Short Run
Thermoform Production Tooling
Trim Tool
Market ServedDIY
Design Software UsedPro Engineer
Alias
Adobe Illustrator

RAPID TOOLING AND SHORT RUN

Material Gauge0.012
Trim Methodhand trimmed
Delivery Time48 Hours
Number of Parts Delivered24

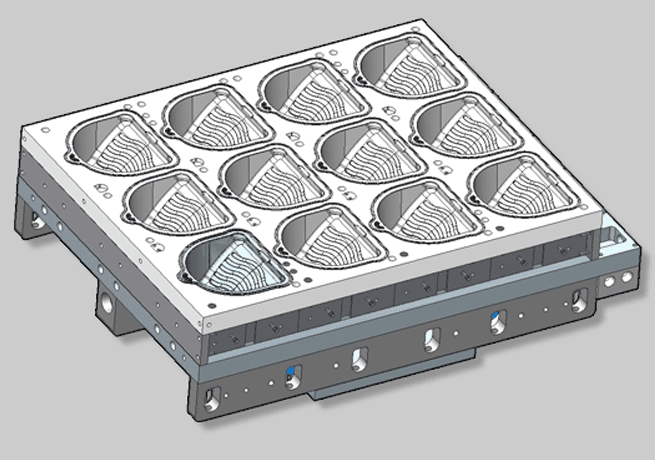

THERMOFORM PRODUCTION TOOLING

Tool Type12 up
3 across
4 thru
Tool Dimensions40 x 32
Top Half12.125
Bottom Half9.125
Shrinkage1.045
Product Size8.95 x 8.64 x 3.93 deep
Material Formed.015 PET
Design Software UsedPro Engineer
MountingLyle 140f
Cavitieswater cooled
Stripper9.125
ClampingPerimeter Clamp
hook ups
vacuum: 1-1/2" npt
form air: 1" npt
water: 1" npt
2 weeks design
8 weeks build
Delivery Time2 Weeks Design
8 Weeks Build

TRIM TOOL

Trim Tool TypeSteel Rule Die
Material.015 PET
Shrinkage1.002
Inches of Rule356 inches
Product Size8.95 x 8.64
Mounting1.002
Die Spec
Upper Trim Backer4- 2" posts
Trim Block5 x 28 x 37
product handlingstacking table
Delivery Time1 Week Design
4 Weeks Build
