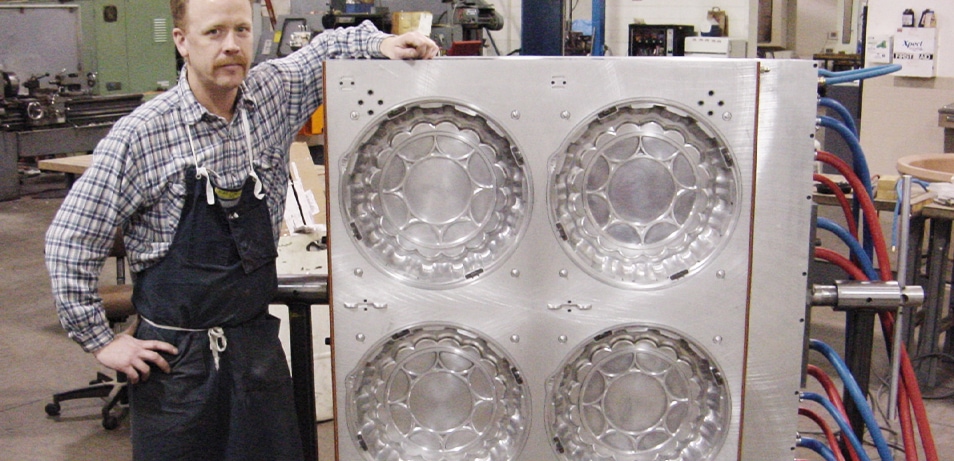

A major producer in the packaging industry approached Omnitool to design and manufacture form and trim tooling for an oversized deli container lid with an outside diameter of 18.0″. This tool forms product from OPS sheet and therefore requires the plugs to be heated to eliminate sheet chilling while encouraging better flow and distribution of material. The tool is designed to run in an Irwin Magnum former and trim press.

Trim Tooling for the Food Packaging Industry

Our large machining centers limit setups and provide a more accurate part. These large plug assists were turned in-house and polished to prevent ghosting.

Trim Tooling for the Food Packaging Industry

All tools are rigorously tested prior to shipping. That includes a full test of the electrical/heater system.

Trim Tooling for the Food Packaging Industry

All of our dies are tested in a die handler. Paper cuts are produced prior to shipping. These paper cuts are shipped with the tool to provide proof of the performance.

For more information on this design and manufacturing project, please see the details below.

For details about our other services please contact Omnitool
info@omnitool.com 763.535.4240

Request a Quote

Back to Top


FORM TOOL

Tool Type10 up , 3 Across, 3 Thru
Tool Dimensions41x36
Shrinkage.02"
Product Size12x3x8
Material Formed.015 P
Design Software UsedPro Engineer
MountingLyle 140f
CavitiesFlood Cooled
Graphic Inserts
.02 Vac hole
Teflon Coated
StripperFlood Cooling
perimeter clamp
AirActuated
front and rear sheet clamp
10 weeks
ClampingFlood Cooling
Front and Rear Sheet Clamp
Perimeter Clamp
Hook upsVacuum: 1-1/2 npt
Cooling: 3/4 npt
Delivery Time2 Weeks Design
8 Weeks Build

TRIM TOOL

Market Servedfood packaging
Material Trimmed.015 PP
Number Across3
product Size12x3x8
MountingLyle 140f

Die Spec

Posts4- 2" posts
Shut Height10
Open Height20.5
Product HandlingStacking Table
Cone Locators
Sheet Guides

Punch Spec

TypeBlanking
Materiald-2
Hardness60-62rc
ShearNo
Engagement Depth.090" @ 10.000"
EjectorFlat Plate
Pneumatic
2" inch stroke
Delivery Time2 Weeks Design
8 Weeks Build
